Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle

گواهی
چین Shenzhen Learnew Optoelectronics Technology Co., Ltd. گواهینامه ها
چین Shenzhen Learnew Optoelectronics Technology Co., Ltd. گواهینامه ها
نظرات مشتریان
25 آگوست 2023، من تراشه های UVA LED را از Learnew خریداری کردم. Learnew تراشه های UVA سفارشی را که درخواست کردیم به سرعت و با کار عالی تحویل داد. کار کردن با Learnew لذت بخش بود.اون مي تونست به من بگه که چه محصولي با پرينترهاي سخت کننده ام کار مي کنه. وقت زيادي برام صرفه جويي ميکنه. اونا خيلي حرفه اي هستن

—— بازرگانی اشرف

13 اکتبر 2023، من یک تراشه LED 3535 COB سفارشی دریافت کردم. توجه آنها به جزئیات، پاسخ به موقع و تحویل به موقع از انتظارات من فراتر رفته است. نمونه ای که دریافت کردم همان چیزی است که من نیاز دارم،خیلی درخشان، من برای مدت طولانی در آینده انتخاب خواهم کرد

—— هکتور بوستیلو

مارس 2024,فقط محصول را دریافت کرده و آن را امتحان کرده ایم,طراحی این تراشه های LED Hight خارق العاده است. آنها جمع و جور هستند, آسان برای نصب, و روشنایی عالی را فراهم می کنند.من از عملکردشون خیلی راضی هستم!

—— فابیو آنتیستا

من کاملا تحت تاثیر عملکرد این تراشه های UV LED قرار گرفتم. آنها خروجی UV قابل اعتماد، کارایی بالا و طول عمر طولانی را ارائه می دهند. یک سرمایه گذاری عالی برای هر برنامه UV!

—— علی محمد

چت IM آنلاین در حال حاضر

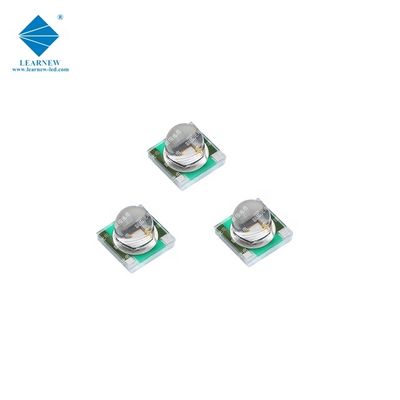

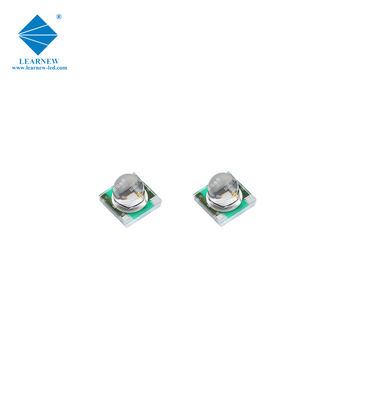

Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle

Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle
Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle

تصویر بزرگ :  Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle

جزئیات محصول:
محل منبع: گوانگدونگ ، چین
نام تجاری: Learnew
پرداخت:
مقدار حداقل تعداد سفارش: 10

Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle

شرح
ولتاژ ورودی: 3.0-3.4v کارآیی درخشان: 240 LM/W
شار نوری: 240-280lm ؛ 350-400lm قدرت: 3W ، 4W
زاویه مشاهده: 120 درجه شاخص ارائه رنگ: 70/80/90/95
دمای عملیاتی: -20 - 100 دمای ذخیره سازی: -20 - 80
اندازه: 3.5*3.5 میلی متر جاری: 700 میلی آمپر؛ 1000 میلی آمپر
ماده تراشه: ای اینگان بستر: سرامامیک
اندازه تراشه: R3.0MM ضعف نوری: 0.1 ٪
وزن محصول: 0.01 کیلوگرم
برجسته کردن:

Sanan SMD3535 LED chip 3W white,ceramic substrate LED chip 4W,120° viewing angle SMD LED

,

ceramic substrate LED chip 4W

,

120° viewing angle SMD LED

Gold Wire Bond Sanan SMD3535 High Lumen Flash Light Spare Parts Customs Wire+connector Single Color White or R/G/B Led Chip
Product Specifications
Color Temperature (CCT) 2700K (Soft Warm White), 3500K (Warm White), 4100K (Neutral White), 5000K (Daylight), 6000K (Daylight Alert)
Input Voltage 3.0-3.4V
Warranty 2-Year
Type SMD LED
Support Dimmer Yes
Lighting Solutions Service Lighting and circuitry design, LitePro DLX layout, auto CAD layout
Luminous Efficacy 240 lm/w
Lifespan 2 years
Product Weight 0.01 kg
Chip Material INGAN
Emitting Color White
Luminous Flux 240-280LM; 350-400LM
Power 3W, 4W
Viewing Angle 120°
Color Rendering Index (Ra) 70/80/90/95
Operating Temperature -20°C to 100°C
Storage Temperature -20°C to 80°C
Substrate Ceramic
Size 3.5*3.5MM
Chip Brand SANAN 55mil/SANAN 45mil
Product Description

We accept OEM and ODM service to customize any type of LED chip.

Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 0 Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 1
Design Advantages
  • Ceramic leadframe
  • High ESD pass
  • Standard A Class chips
  • Cost performance
  • Gold wire bond
  • Easy reflow soldering

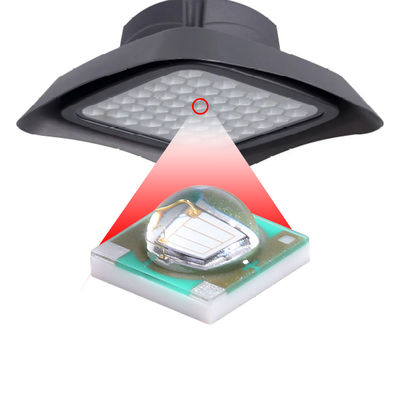

Applications
  • LED grow light
  • LED torch
  • LED stage light
  • LED streetlight
  • LED Landscape lighting
  • LED spotlight
Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 2 Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 3 Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 4
Company Information
Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 5 Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 6 Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 7 Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 8

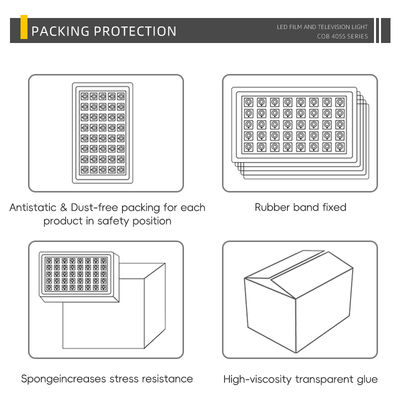

Product Packaging
Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 9 Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 10
Frequently Asked Questions
Q1: Do you supply OEM, ODM service?
A1: YES, absolutely it can be realized. We focus on OEM & ODM service for more than 7 years.
Q2: All the pictures are real photos?
A2: Yes, the pictures of all products on this page are 100% real photos taken by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs, including products parameters, application, your contact way and quantity. Our professional team will reply you within one hour.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. The shipping costs are based on your order's volume and weight.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly or contact us for order details.
Q7: What payment terms are available?
A7: T/T, PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
